East Perth · hot water · completed 16 September 2026
63 mm Auspex riser at Adagio Apartments
System Plumbing and Gas replaced the hot-water flow and return at Adagio Apartments in East Perth. The Aquatherm pipe came out. 63 mm big bore multilayer Auspex went in, supplied by Reece Plumbing. The riser serves 22 floors. It is the first time this pipe has been used in an apartment building in Western Australia.
A hot-water flow and return does two jobs. The flow takes hot water up the building. The return brings it back to the plant so the ring stays hot. Without that return, the apartment furthest from the plant runs a tap cold until the cooled water sitting in the riser has cleared.
The 63 mm pipe
Auspex water multilayer pipe is built in three working layers. Cross-linked polyethylene carries the water. A butt-welded aluminium layer sits in the middle, so the plastic wall is not thinned to make room for an overlap weld. A heat-stable polyethylene forms the outside. That aluminium core is what holds a tall riser in line once the pipe is full of hot water. 63 mm is the largest size in the Auspex big bore water range.
Where the riser lands

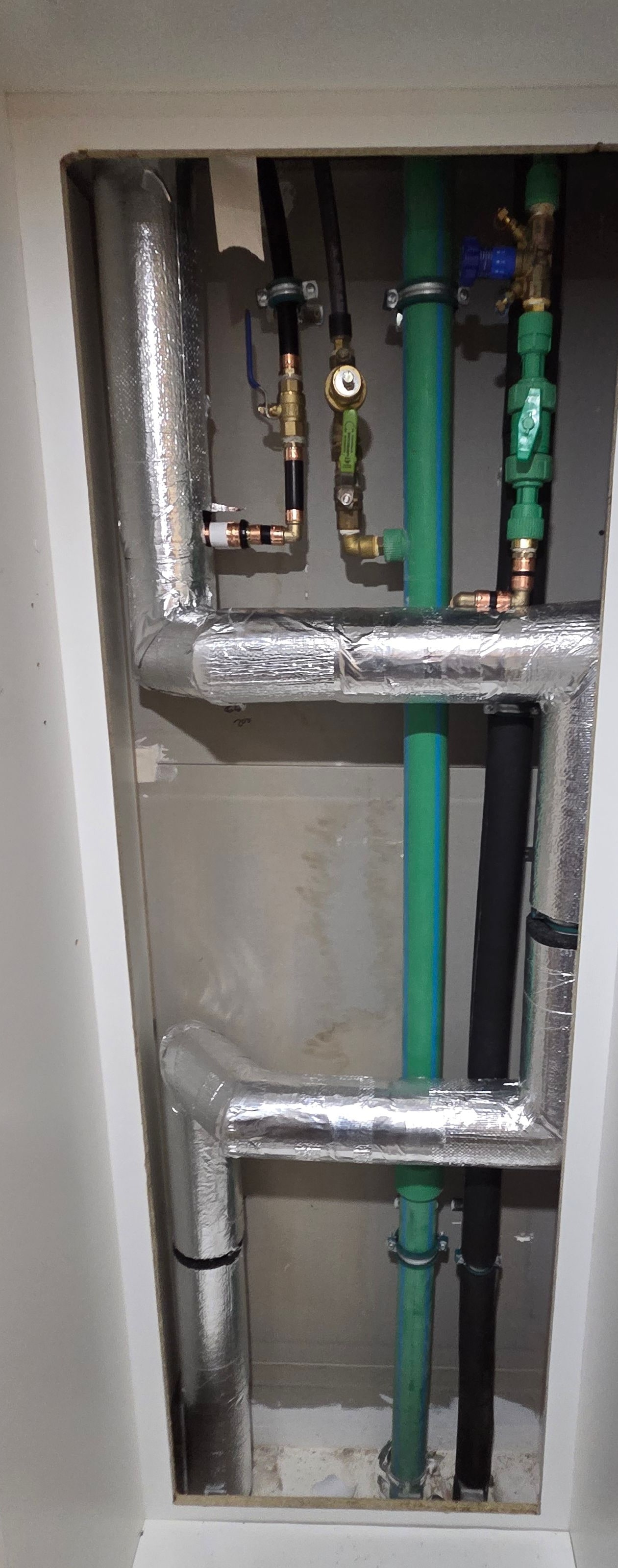

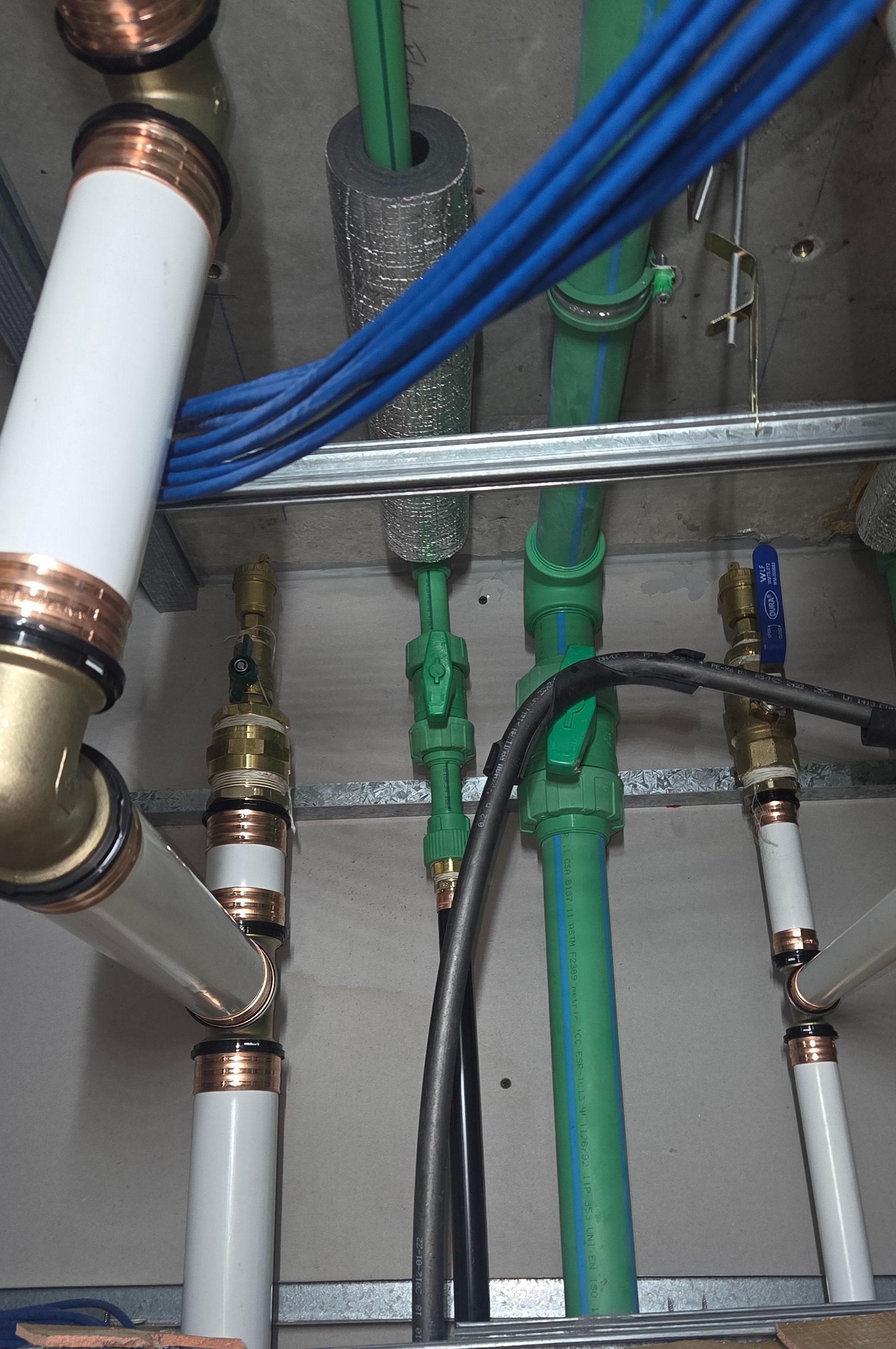

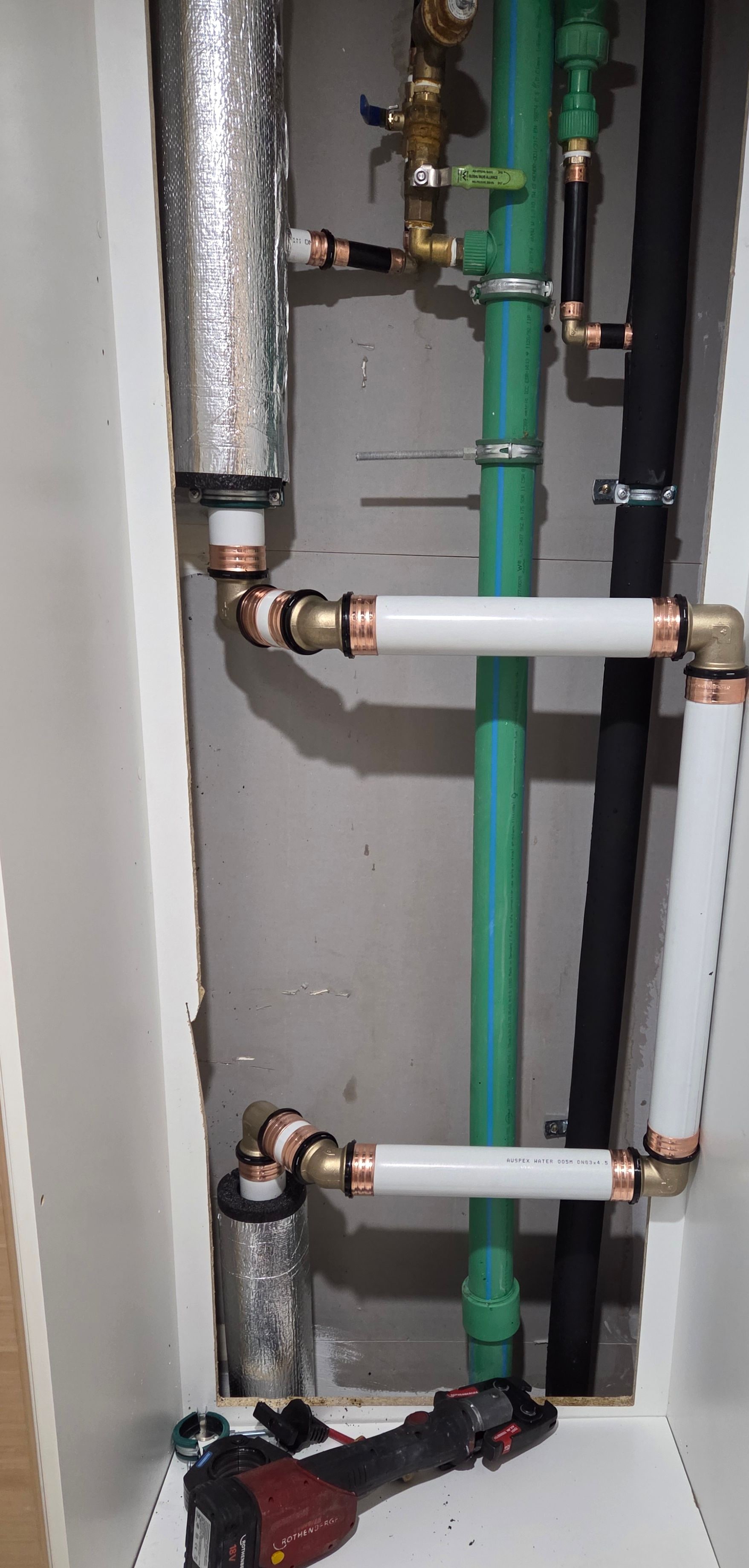

The shaft is only half the job. Each floor the pipe comes into an apartment service cupboard: isolation, the offsets that miss other services, and the last run before the unit. Those cupboards were fitted off first, then the hot-water pipe was insulated and the door went back on.
A letter of endorsement from Auspex
Putting a new size into a 22-storey occupied building is not a catalogue swap. Auspex issued a letter of endorsement for this install, so the owners have manufacturer backing for the pipe that went in — not only a contractor warranty. That letter sits with the job file if a strata, insurer or later plumber asks how the riser was signed off.
Water reinstated every evening
Adagio stayed occupied for the whole replace. Isolation happened in working hours; supply was back on each evening so people coming home could cook and shower as normal. Leaving a 22-floor tower dry overnight is not a method. The crew left, the building lived.
Hot-water risers in Perth apartments
The facts that change the price are the ones you cannot see from the street: which plant the riser comes off, whether flow and return share a shaft, and how you get into the cupboards. Send those with the suburb and the pipe that is in there now. We look at the job and price the work we can see before we start.
Office hours are Monday to Friday, 7:00am – 5:00pm. Call 0412 808 356 or get a quote. Same team for hot water and plumbing across Perth city and East Perth.
Questions about this riser
63 mm big bore multilayer Auspex, supplied by Reece Plumbing. It replaced the existing Aquatherm pipe on the hot-water flow and return. The riser serves 22 floors at Adagio Apartments in East Perth, and the work was completed on 16 September 2026.
It is an Auspex water pipe for use inside buildings. The wall is three layers: cross-linked polyethylene inside, butt-welded aluminium in the middle, and a heat-stable polyethylene outside. 63 mm is the largest size in the big bore range. On this job it carries the hot-water flow and return.
Yes. The hot-water flow and return at Adagio was Aquatherm. That pipe was removed and replaced with 63 mm big bore multilayer Auspex.
Adagio Apartments is the first apartment building in Western Australia to have 63 mm big bore multilayer Auspex installed. The pipe it replaced was Aquatherm.
Reece Plumbing supplied the 63 mm big bore multilayer Auspex. System Plumbing and Gas installed it. Auspex supplied a letter of endorsement for the installation.
Yes. Adagio stayed occupied. The water supply was reinstated every evening so tenants were not left without water overnight. For a planned riser replacement in Perth, call System Plumbing and Gas on 0412 808 356 or use Get a Quote. Office hours are Monday to Friday, 7:00am to 5:00pm.
